Foldable Container Barracks Modular Design for Military Camp

Barracks

Foldable Container Barracks Modular Design for Military Camp

SUZHOU STARS INTEGRATED HOUSING CO., LTD. introduces its innovative Foldable Container Barracks Modular Design, specifically designed for military camps. This product offers a flexible and efficient solution for accommodating military personnel in various environments. The foldable design allows for easy transportation and assembly, making it ideal for rapid deployment and temporary use. The modular design also provides flexibility in creating different configurations to suit the needs of different military camps. The container barracks are constructed using high-quality materials to ensure durability and longevity, while also offering a comfortable and functional living space for the military personnel. With SUZHOU STARS INTEGRATED HOUSING CO., LTD.'s foldable container barracks, military camps can be quickly and easily set up, providing essential accommodations for troops in any location.

  • Size 20ft, 40ft
  • Security Features Lockable doors and windows
  • Customization Options Additional doors, windows, and partitions
  • Plumbing Water and drainage system
  • Capacity 8-10 people
  • Color Customizable

Foldable container barracks can be quickly unfolded or folded within a short time, significantly reducing the time required for deployment and withdrawal. In military operations, time is often a crucial factor, so the ability to rapidly adjust the location or size of barracks is crucial for strategic and tactical flexibility.

Foldable container barracks are typically lightweight and easy to transport due to their structural characteristics. This means they can be rapidly deployed using various modes of transportation, such as trucks, aircraft, and helicopters, to meet needs in remote or emergency situations.

Foldable container barracks can adapt to various environmental conditions, including harsh weather and terrain. Their structural design and material choice often consider durability and resistance to wind and rain, ensuring stable living conditions in diverse environments.

Many foldable container barracks feature a modular design, meaning they can be combined and expanded according to needs. This flexibility allows them to adapt to different sizes of troops and varying accommodation requirements.

While the initial investment in foldable container barracks may be higher, they typically offer good cost-effectiveness when considering their lifespan, reusability, and maintenance costs. Additionally, their rapid deployment and withdrawal characteristics can save significant labor and time costs.

Besides serving as accommodation facilities, foldable container barracks can also be used for other purposes, such as temporary storage, medical facilities, and command posts. This versatility makes them highly valuable in military operations.

Some modern foldable container barracks employ environmentally friendly materials and energy-saving designs, aligning with sustainability requirements. This helps reduce environmental impact and complies with green procurement policies of many countries and militaries.

Standard Quick Assembly Container House Datasheet
Product Specification:
3-meter standard container
Length(mm) 5950(5730)
Width(mm) 3000(2800)
Height(mm) 2800(2500)
Center column
Roof Flat roof, free drainage
Number of floors ≤3
Design parameters Service life 5-8 years
Ground live load 1.8KN/㎡
Roof live load 0.5KN/㎡
Wind load 0.6KN/㎡
Seismic degree 8
Structural corner column galvanized cold rolled section steel, t=2.3mm, material Q235B
roof main beam galvanized cold rolled section steel, t=2.3mm, material Q235B
roof sub-beam Galvanized square steel 5*5, t=1.5mm, radian galvanized square steel 4*6t= 1.2mm material Q235B
floor main beam galvanized cold-rolled section steel, t=2.3mm, material Q235B
floor sub-beam galvanized square steel 4*8 (5), galvanized square steel 8*8 (4) material Q235B
Paint Graphene Powder spraying (Electrostatic spraying)
Roof Roof panel 0.40mm thick color steel plate, color white gray
Ceiling 0.25mm thick 811 ceiling, color white gray
Floor Decorative surface
basic floor 18mm sanding board
Wall Thickness 50mm thick color steel glass fiber sandwich board; The outer and inner plates are made of 0.3mm aluminum plated zinc color steel plate
Heat preservation 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion performance is class A non-combustible
Color white gray PE coating
Door Spec(mm) Width X height =920*2030 common door
Material Steel door
Window Spec(mm) Front window: width X height =920*1200; Rear window (standard) : width X height =920*1200;
Frame Plastic steel window single glass
Glass common
Electricity Voltage 220V~250V
Wire input power wire is 4 square, AC wire is 4 square, socket wire is 2.5 square, lighting switch wire is 1.5 square
Circuit breaker High break Miniature Circuit breaker (32A)
Lamp tube Two sets of circular LED fluorescent lamps
Socket 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A

container barracks7-2.jpgcontainer barracks8-1.jpgcontainer barracks7-1.jpg

Company introduction



As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.



Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.



As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.

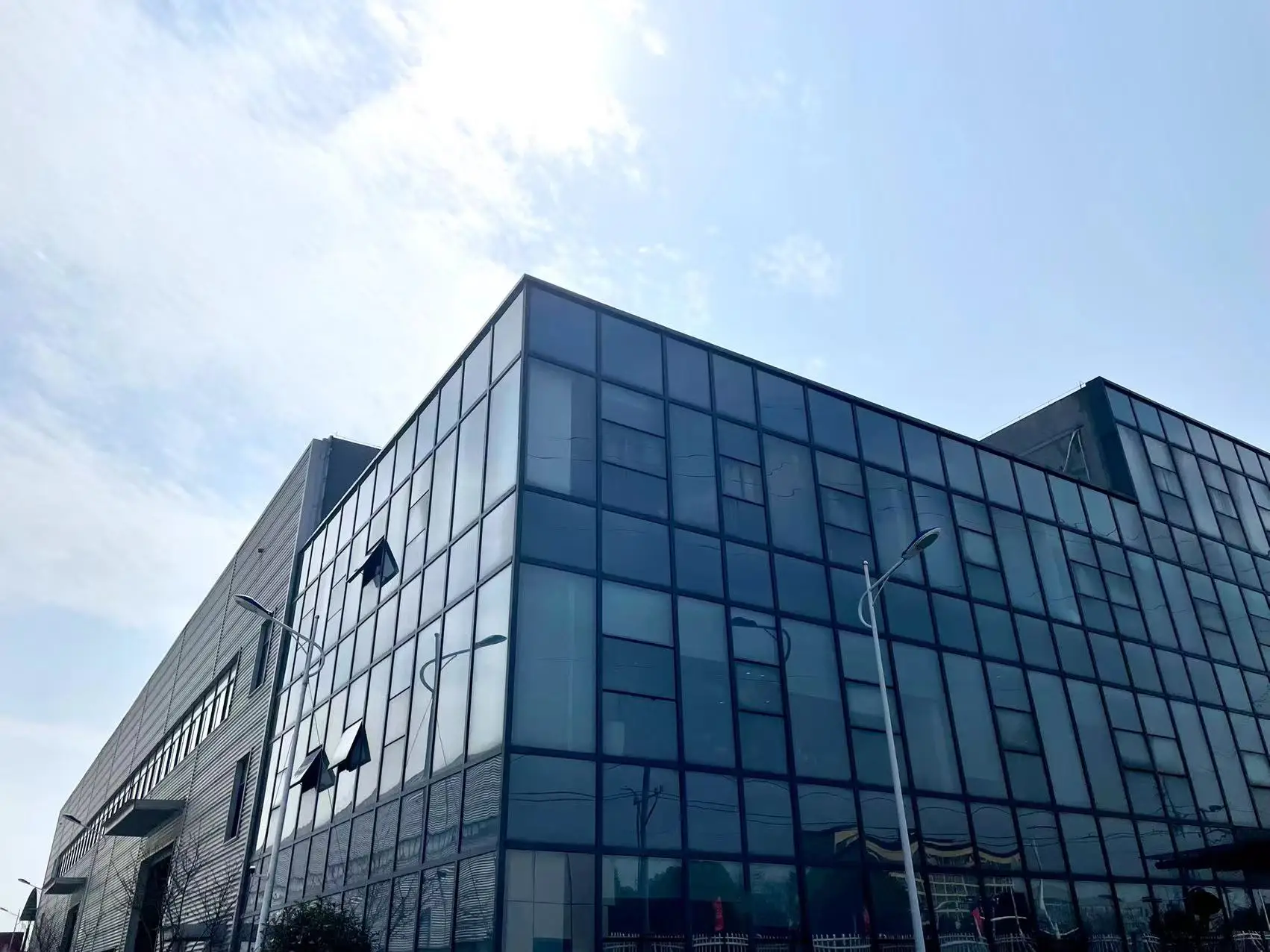

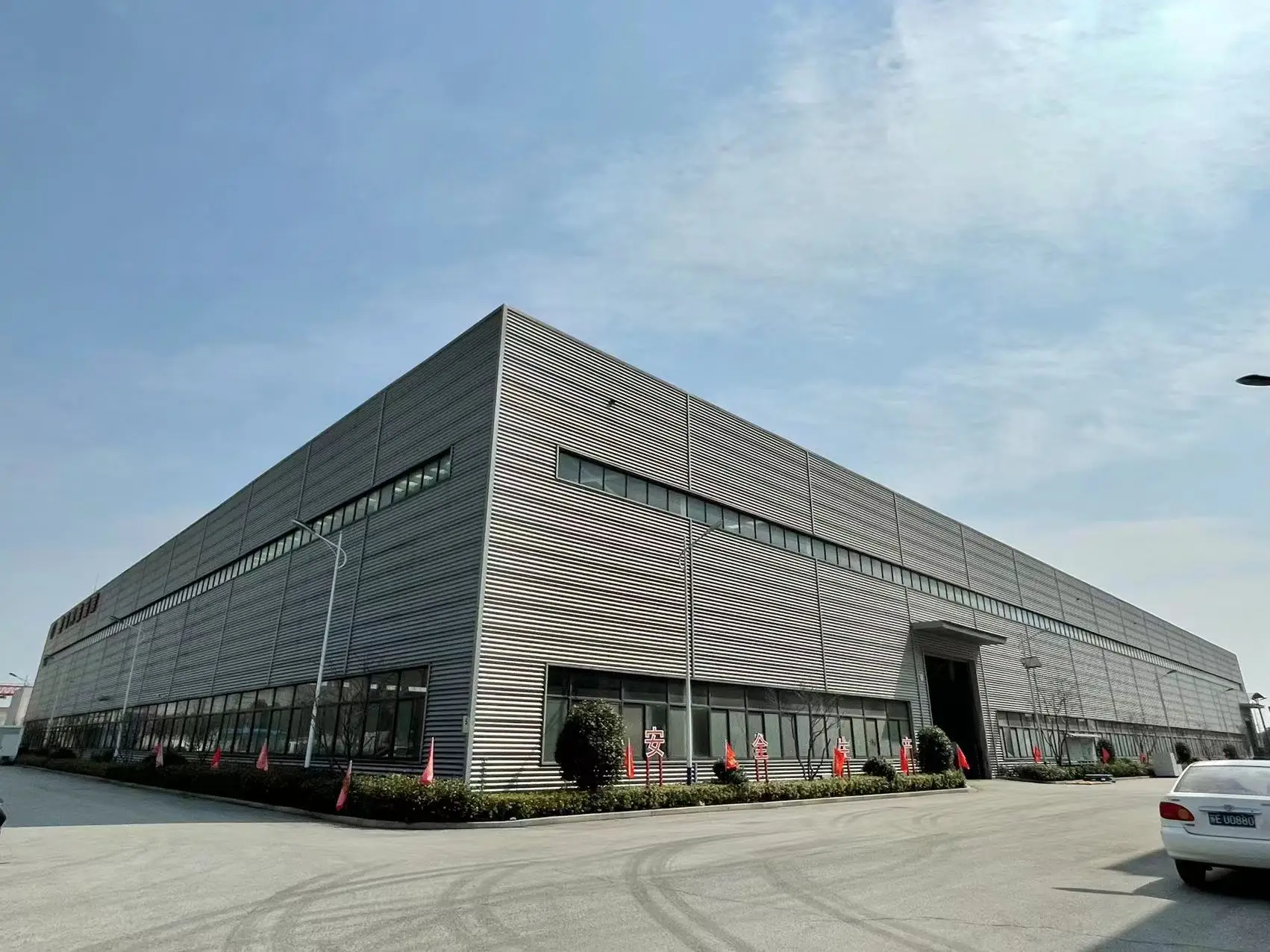

Company photo

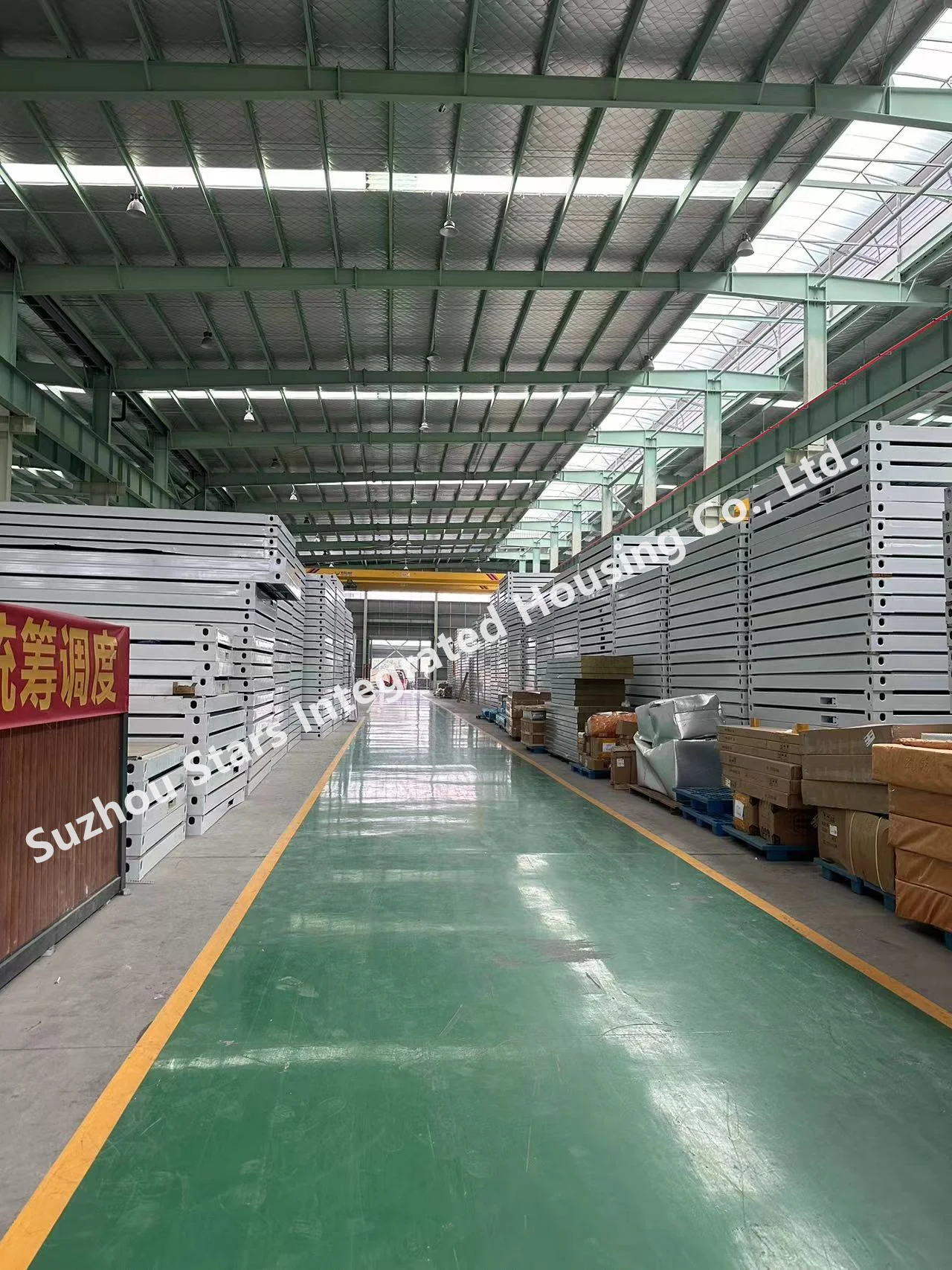

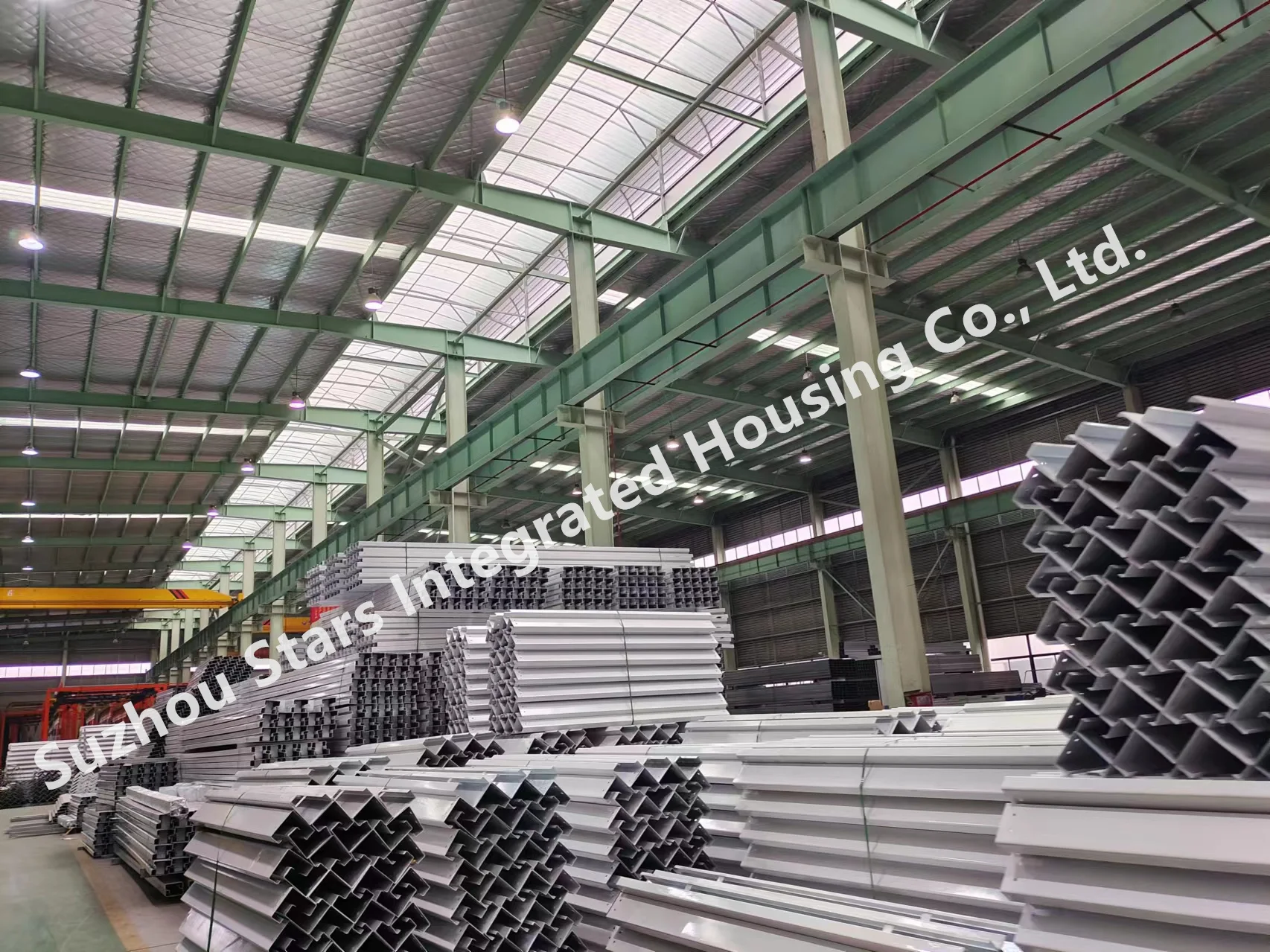

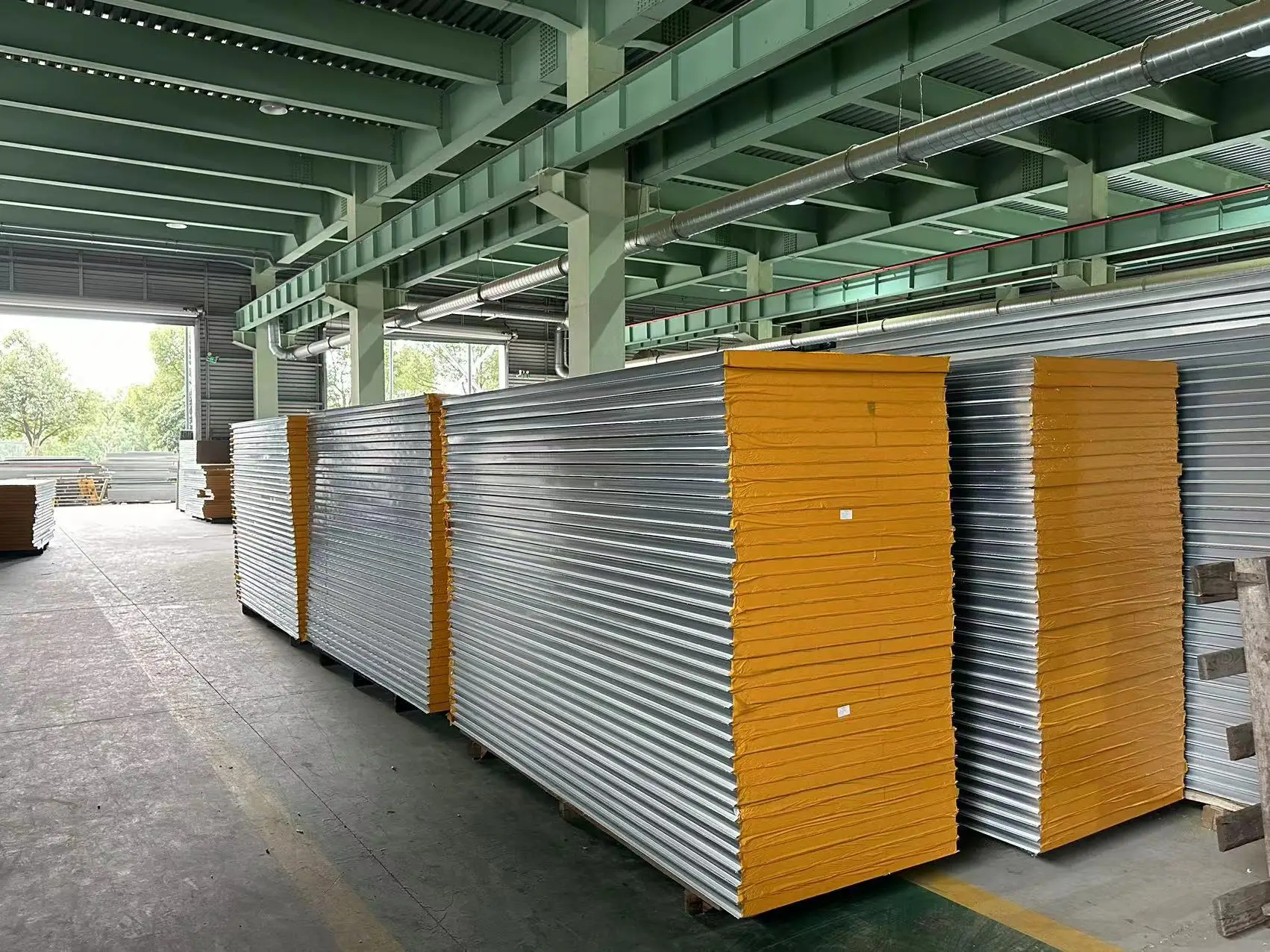

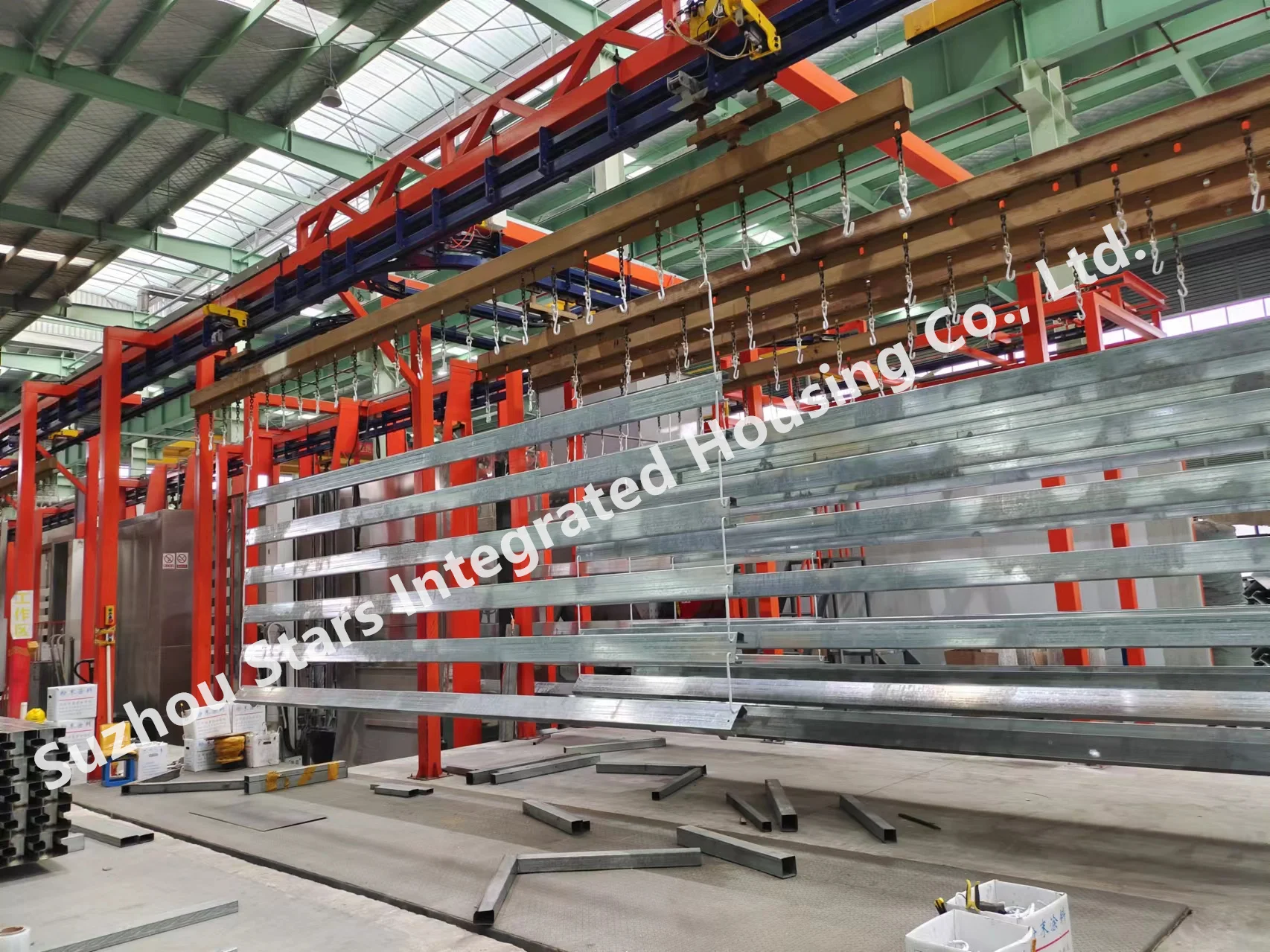

Workshop
