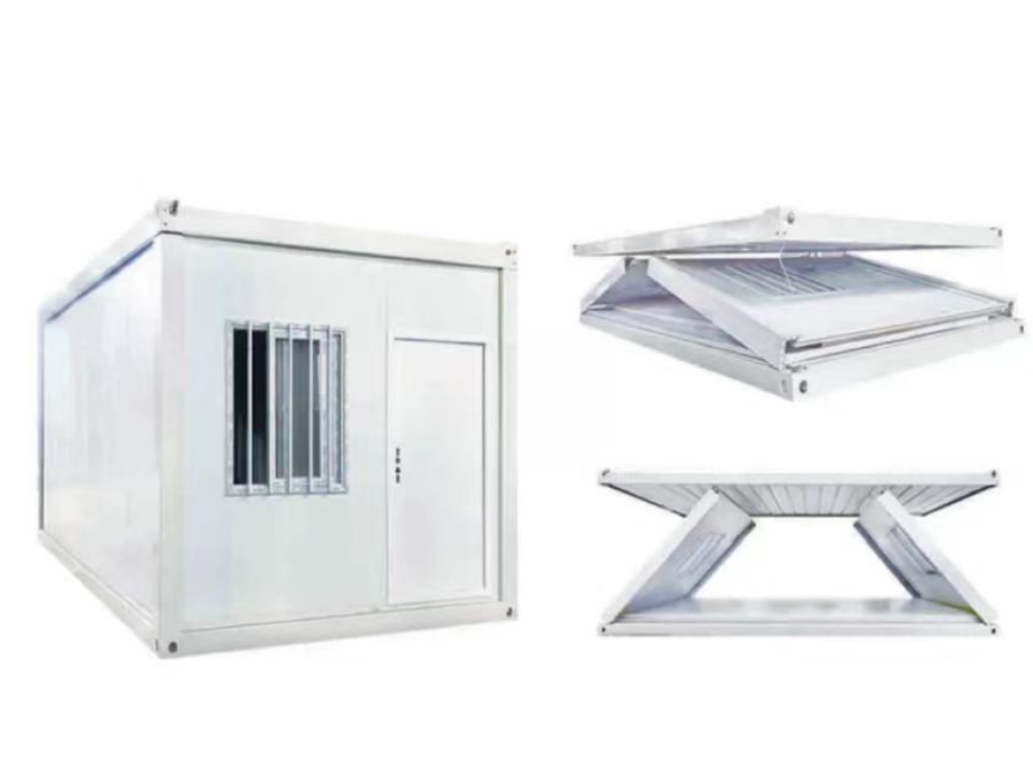

Readymade Folding Container House Single Room Tiny House with Effortless Assembly and Swift Relocation Capabilities
Readymade Folding Container House Single Room Tiny House Easy Assembly Quick Relocation Deployment
The folding container house, when utilized as a tiny house or single room, presents an array of advantages. Firstly, its space-saving design drastically minimizes height and volume compared to traditional container houses, perfect for constrained spaces or individual use. Secondly, its innovative folding mechanism facilitates swift and straightforward assembly, disassembly, loading, unloading, and transportation. The house's versatility allows for diverse layouts tailored to the occupant's needs, fostering multifunctional spaces. Constructed from steel, it boasts remarkable strength, durability, and resistance to harsh weather conditions, ensuring stability across various environments. Additionally, its eco-friendly nature aligns with green economy trends, offering superior thermal insulation and energy efficiency. Economically, folding container houses offer significant cost savings of around 60% compared to traditional buildings, coupled with the flexibility to customize the interior according to personal preferences, enhancing the overall living experience. In conclusion, the folding container house is an optimal choice for residential purposes, blending practicality, durability, and affordability with environmental consciousness and personalization.
| Standard Foldable Container House Datasheet | ||||
| Product specifications | External size(L*W*H) | 5800mm*2480mm*2520mm | ||
| Inner size(L*W*H) | 5588mm*2268mm*2160mm | |||
| Folding height | 570mm | Unit weight | 1300kg | |
| Design parameter | Thermal insulation | λ=0.048W/m·K | wind resistance | 0.60kN/㎡ |
| Sound insulation | ≥30dB | Fireproof performance | Class A | |
| Waterproof performance | 360 degrees bite connection, organized drainage,no leakage under precipitation 16mm/min | Seismic performance | 8 degree | |
| Floor live load | 2.0kN/㎡ | Roof live load | 1.0kN/㎡ | |
| Item | part | Spec(mm) | Unit | Qty |
| Frame | Corner piece(l*w*h*t) | Top 220*140*190*3.75,material Q235 | pc | 4 |
| Bottom 220*140*160*3.75,material Q235 | pc | 4 | ||
| Column(l*w*h*t) | 220*140*2500*2.2,material Q235 | pc | 4 | |
| Bottom frame | 160*2.45 main beam,material Q235 | pc | 4 | |
| 120*1.2 second beam,material Q235 | pc | 9 | ||
| Top frame | 160*2.2 main beam,material Q235 | pc | 4 | |
| C80*40*1.5 second beam,materialQ235 | pc | 6 | ||
| 20*20*1.2 purlin,material Q235 | pc | 4 | ||
| Surface treatment | electrostatic spraying plastic powder baking paint | set | 1 | |
| container body | Roof panel | color steel panel,360°bite connection t=0.36mm | set | 1 |
| Ceiling decoration | 170 type color steel integrated board t=0.3mm | pc | 34 | |
| Heat-insulating layer | Glass wool roll mat, thickness 50mm, capacity 28kg/m³, combustion performance of class A non-combustible. | set | 1 | |
| Floor structure board | 18mm glass-magnesium board | pc | 5 | |
| Floor decoration | Manual pvc flooring leather, thickness 1.6mm | set | 1 | |
| Left and right walls (surrounded by galvanized groove edging) | 950 type 50 series rock wool double white color steel composite panel with double-sided film, steel plate t=0.3mm, rock wool 60kg/m³ | pc | 2 | |
| Front walls (surrounded by galvanized groove edging) | 950 type 50 series rock wool double white color steel composite panel with double-sided film, steel plate t=0.3mm, rock wool 60kg/m³ | pc | 1 | |
| Rear walls (surrounded by galvanized groove edging) | 950 type 50 series rock wool double white color steel composite panel with double-sided film, steel plate t=0.3mm, rock wool 60kg/m³ | pc | 1 | |
| Door&Window | Door | Steel set door, size W925mm×H1970mm, steel plate t=0.4mm | pc | 1 |
| Window | Upvc series plastic steel sliding window, size: W925mm×h1100mm; single-glazed, with anti-theft mesh, with screens | pc | 2 | |
| Folding accessories | Lifting parts, folding parts | set | 1 | |
|
Electrical&Wire (indoor) |
Light | LED600*300 rectangular light | set | 2 |
| Socket | 10A five-hole socket | pc | 4 | |
| Socket | 16A air conditioner socket | pc | 1 | |
| Switch | single-button switch | pc | 1 | |
| Distribution box | which is equipped with a 2P32A leakage protection and two single 16A circuit breakers. | set | 1 | |
| CEE Industrial plug | 220V,50Hz | pc | 1 | |
| Wire | Distribution Wire:3*6 square,AC socket:3*4 square,five-hole socket:3*2.5 square,Light:3*1.5 square | set | 1 | |
As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.
Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.
As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.
Suzhou Stars Integrated Housing Co., Ltd. mainly has five types of products: folding container house, flat pack container house, detachable container house, modified shipping container (in development), and steel structure construction, which can be widely used in many fields, such as dormitory, camp, office, canteen, shop, toilet and shower, viewing pavilion, firefighting station, isolation ward, etc.
