Temporary Detachable Container House Office Building Modular Design Two or Three-Story
Office Building Detachable Container House Various Application Temp Housing
This innovative concept revolves around a temporary office building constructed using detachable container houses, featuring a modular design that offers unparalleled versatility and flexibility. The containers, pre-fabricated and engineered to precision, can be quickly assembled and disassembled as needed, providing a turnkey solution for businesses or organizations seeking a temporary workspace.
The modular design of these container houses allows for customization to suit specific requirements, whether it's the number of rooms, layout, or even the incorporation of specialized equipment and furniture. This flexibility ensures that the office space can adapt to changing needs and scale up or down as necessary.
The detachable nature of the containers facilitates easy relocation, making it an ideal solution for project-based work, temporary offices during construction or renovation, or for companies seeking a cost-effective way to expand their operations without committing to permanent structures.
Moreover, the durability and strength of the container materials ensure that these office buildings can withstand various weather conditions and provide a safe and secure working environment. The containers can also be outfitted with insulation, ventilation, and other amenities to create a comfortable and functional workspace.
Overall, the modular design of the temp detachable container house office building offers a range of benefits, including rapid deployment, cost-effectiveness, scalability, and adaptability. It's an excellent choice for businesses and organizations looking for a flexible and portable solution to their temporary office needs.
| Standard Quick Assembly Container House Datasheet | |||||||||
| Product Specification: 3-meter standard container |
Length(mm) | 5950(5730) | |||||||
| Width(mm) | 3000(2800) | ||||||||
| Height(mm) | 2800(2500) | ||||||||
| Center column | |||||||||
| Roof | Flat roof, free drainage | ||||||||
| Number of floors | ≤3 | ||||||||
| Design parameters | Service life | 5-8 years | |||||||
| Ground live load | 1.8KN/㎡ | ||||||||
| Roof live load | 0.5KN/㎡ | ||||||||
| Wind load | 0.6KN/㎡ | ||||||||
| Seismic degree | 8 | ||||||||
| Structural | corner column | galvanized cold rolled section steel, t=2.3mm, material Q235B | |||||||
| roof main beam | galvanized cold rolled section steel, t=2.3mm, material Q235B | ||||||||
| roof sub-beam | Galvanized square steel 5*5, t=1.5mm, radian galvanized square steel 4*6t= 1.2mm material Q235B | ||||||||
| floor main beam | galvanized cold-rolled section steel, t=2.3mm, material Q235B | ||||||||
| floor sub-beam | galvanized square steel 4*8 (5), galvanized square steel 8*8 (4) material Q235B | ||||||||
| Paint | Graphene Powder spraying (Electrostatic spraying) | ||||||||
| Roof | Roof panel | 0.40mm thick color steel plate, color white gray | |||||||
| Ceiling | 0.25mm thick 811 ceiling, color white gray | ||||||||
| Floor | Decorative surface | ||||||||
| basic floor | 18mm sanding board | ||||||||
| Wall | Thickness | 50mm thick color steel glass fiber sandwich board; The outer and inner plates are made of 0.3mm aluminum plated zinc color steel plate | |||||||
| Heat preservation | 50mm thick glass silk wool, bulk weight ≥60kg/m³, combustion performance is class A non-combustible | ||||||||
| Color | white gray PE coating | ||||||||
| Door | Spec(mm) | Width X height =920*2030 common door | |||||||
| Material | Steel door | ||||||||
| Window | Spec(mm) | Front window: width X height =920*1200; Rear window (standard) : width X height =920*1200; | |||||||
| Frame | Plastic steel window single glass | ||||||||
| Glass | common | ||||||||
| Electricity | Voltage | 220V~250V | |||||||
| Wire | input power wire is 4 square, AC wire is 4 square, socket wire is 2.5 square, lighting switch wire is 1.5 square | ||||||||
| Circuit breaker | High break Miniature Circuit breaker (32A) | ||||||||
| Lamp tube | Two sets of circular LED fluorescent lamps | ||||||||
| Socket | 3 five-hole socket 10A, 1 three-hole air conditioning socket 16A | ||||||||
As a wholly-owned subsidiary of Wujiang Saima (established in 2005), Suzhou Stars Integrated Housing Co., Ltd. focuses on foreign trade. As one of the most professional prefabricated house manufacturers in south-east China, we provide customers with all kinds of integrated housing solutions.

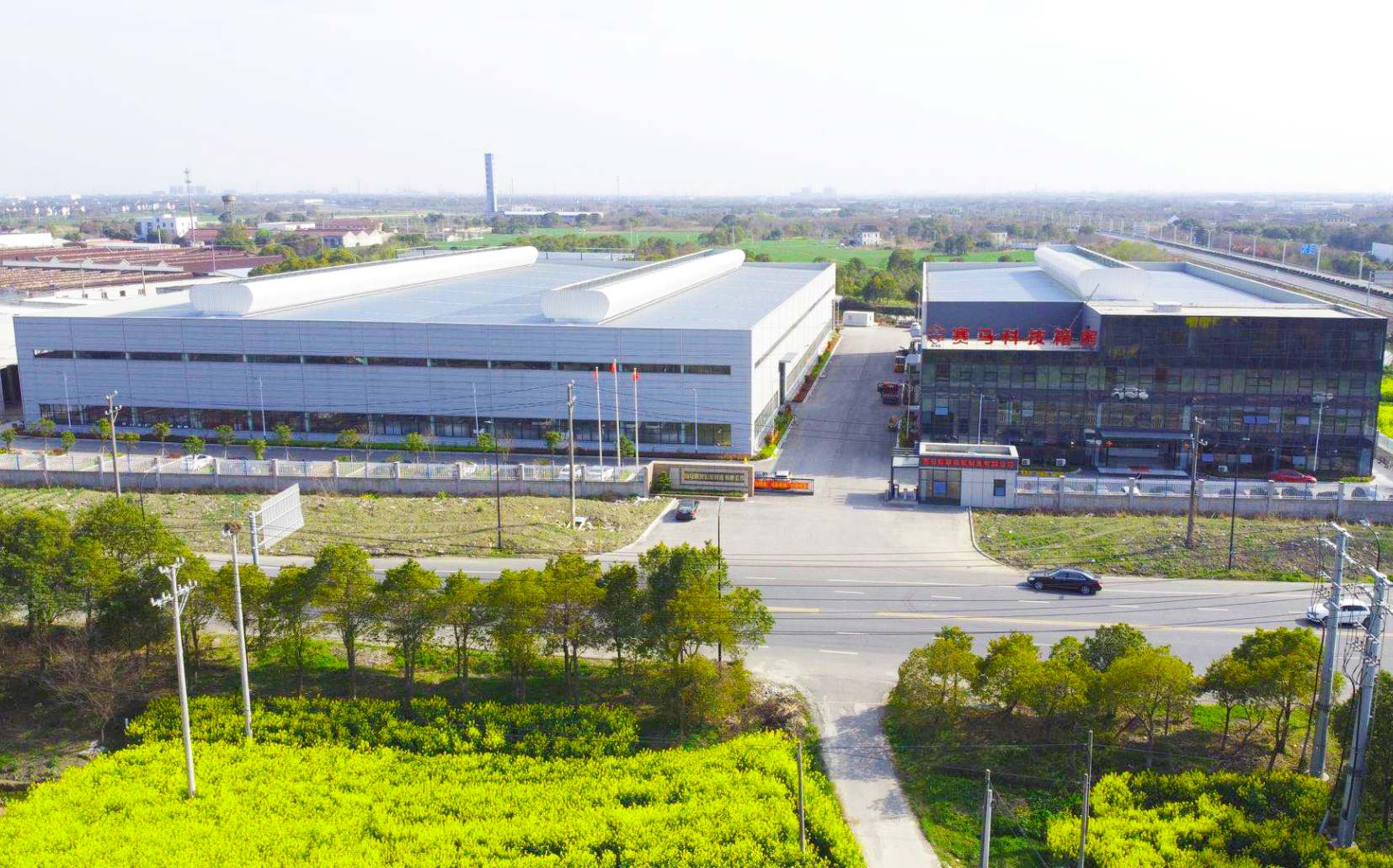

Equipped with complete production lines, including sandwich panel production machines and steel structure production line, with 5000 square meter workshop and professional staff, we already built long-term business with domestic giants like CSCEC and CREC. Also, based on our export experience in the past years, we are furthering our steps to global customers with best product and service.
As a supplier to overseas customers all over the world, we are very familiar with the manufacturing standards of various countries, such as European standards, American standards, Australian standards, and so on. We have also participated in the construction of many large-scale projects, such as recent 2022 Qatar World Cup camping construction.
Suzhou Stars Integrated Housing Co., Ltd. mainly has five types of products: folding container house, flat pack container house, detachable container house, modified shipping container (in development), and steel structure construction, which can be widely used in many fields, such as dormitory, camp, office, canteen, shop, toilet and shower, viewing pavilion, firefighting station, isolation ward, etc.
